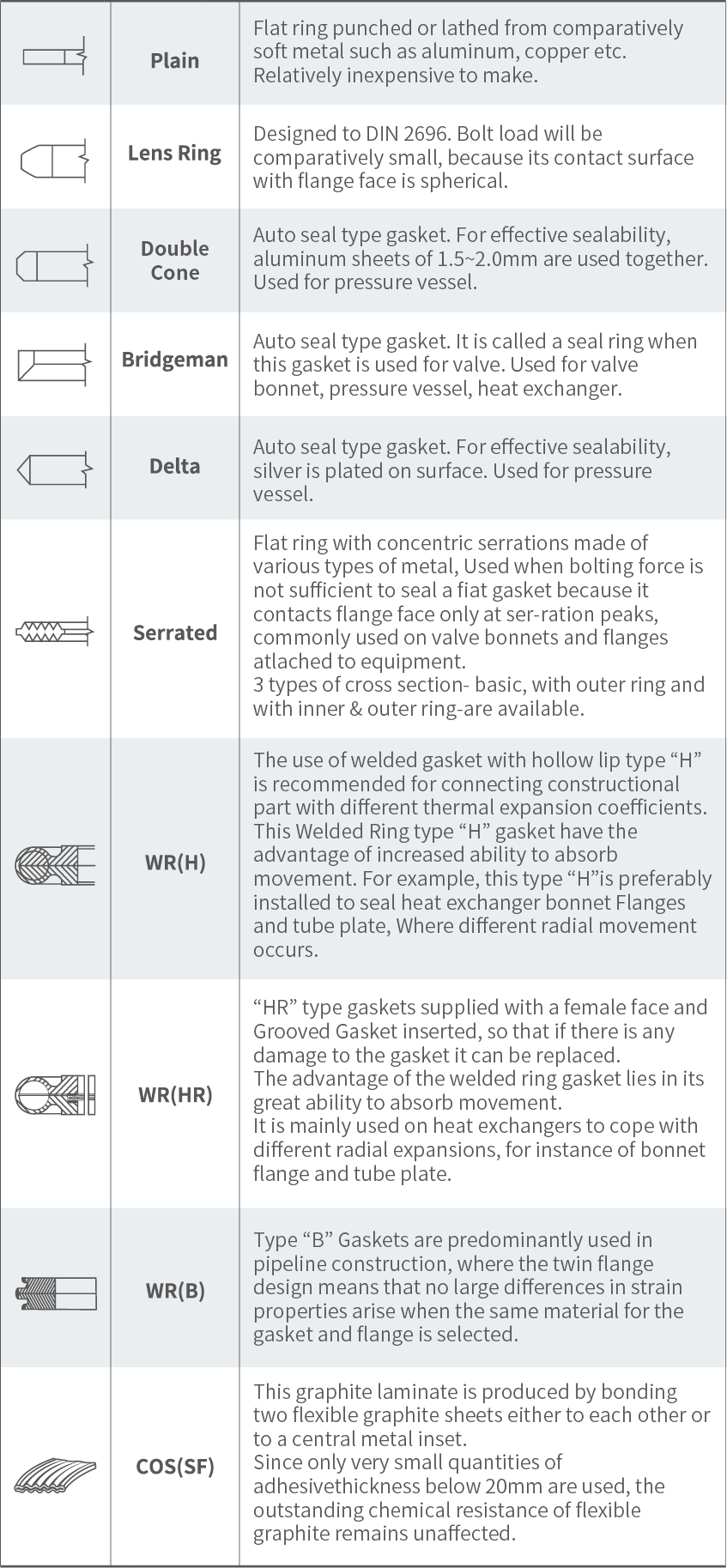

Other Metallic Gasket

Other Metallic Gasket

  • Cross Section

  • Metal O-Ring

    Metal O-Ring shape gasket made of stainless steel (SUS 321) or Inconel (IN-600) tube, Bent metal tube is welded and finished very precisely. For sealing of gases and volatile fluids, vacuum service, PTFE coated type or silver plated type are recommended. 2 types are availabie as follows.

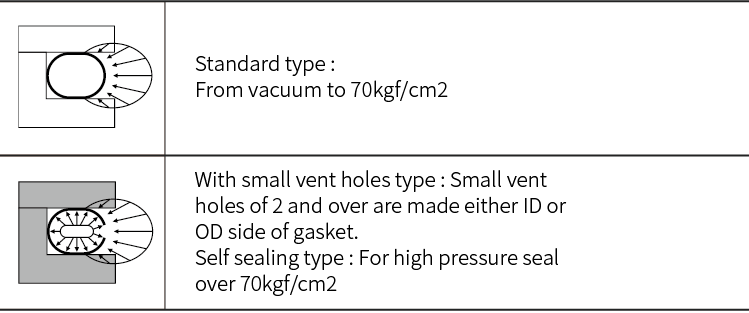

    Type and Recommendation

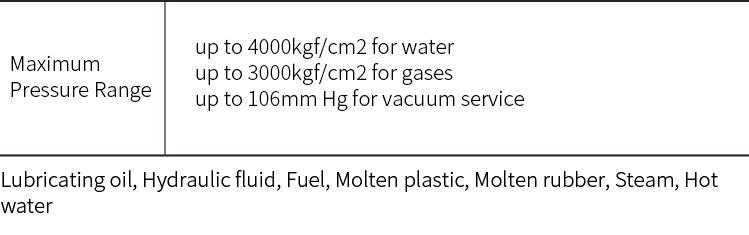

    Service Range

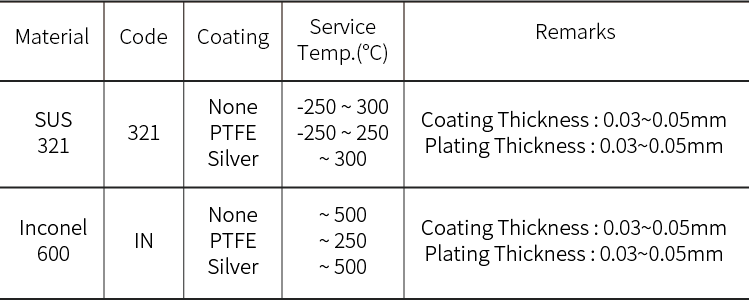

    Standard Material and Service Temperature

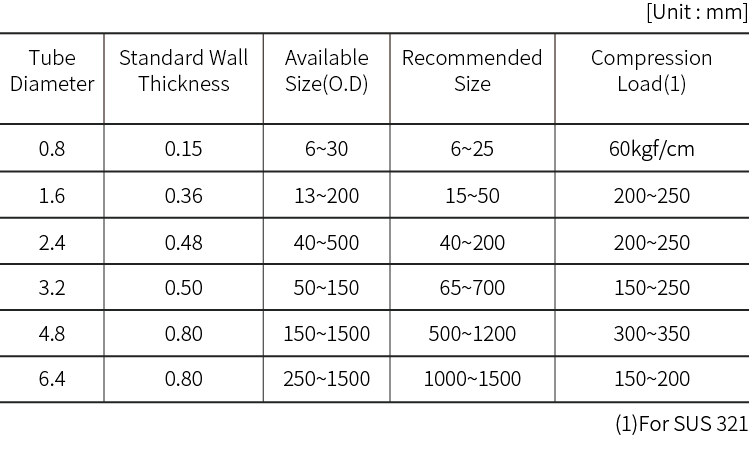

    Standard Dimensions
